BE-GE 8200.0 is a mechanically suspended seat with the suspension unit placed behind the backrest and with 50 mm suspension. Especially designed for reach trucks or similar vehicles with limited cab space, which is built to be driven on smooth floors.

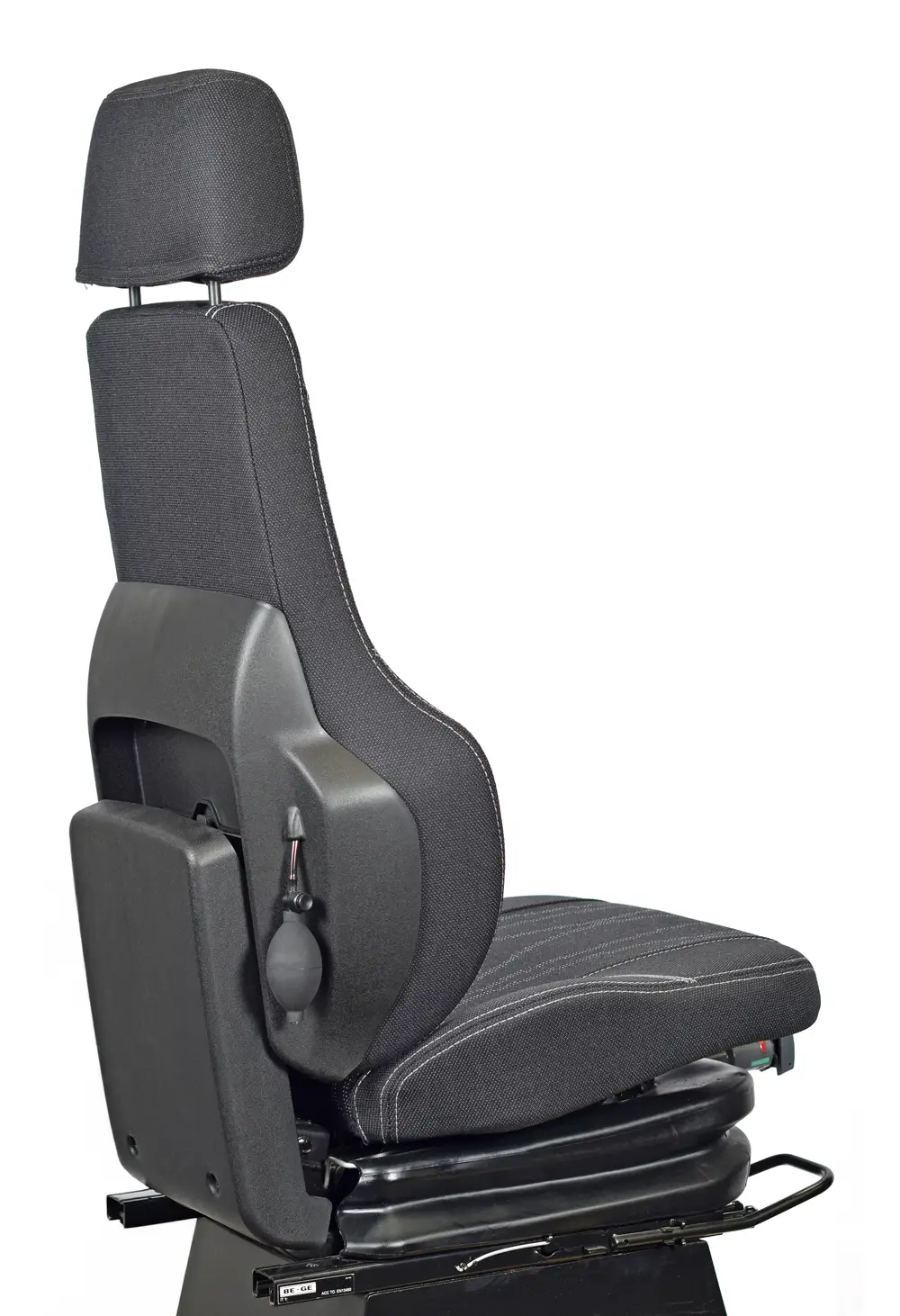

By placing the suspension unit behind the seat’s backrest, the built-in height becomes very low but without decreasing the seats comfort. The seat has simple and ergonomically placed controls for weight adjustment, back adjustment and length adjustment.

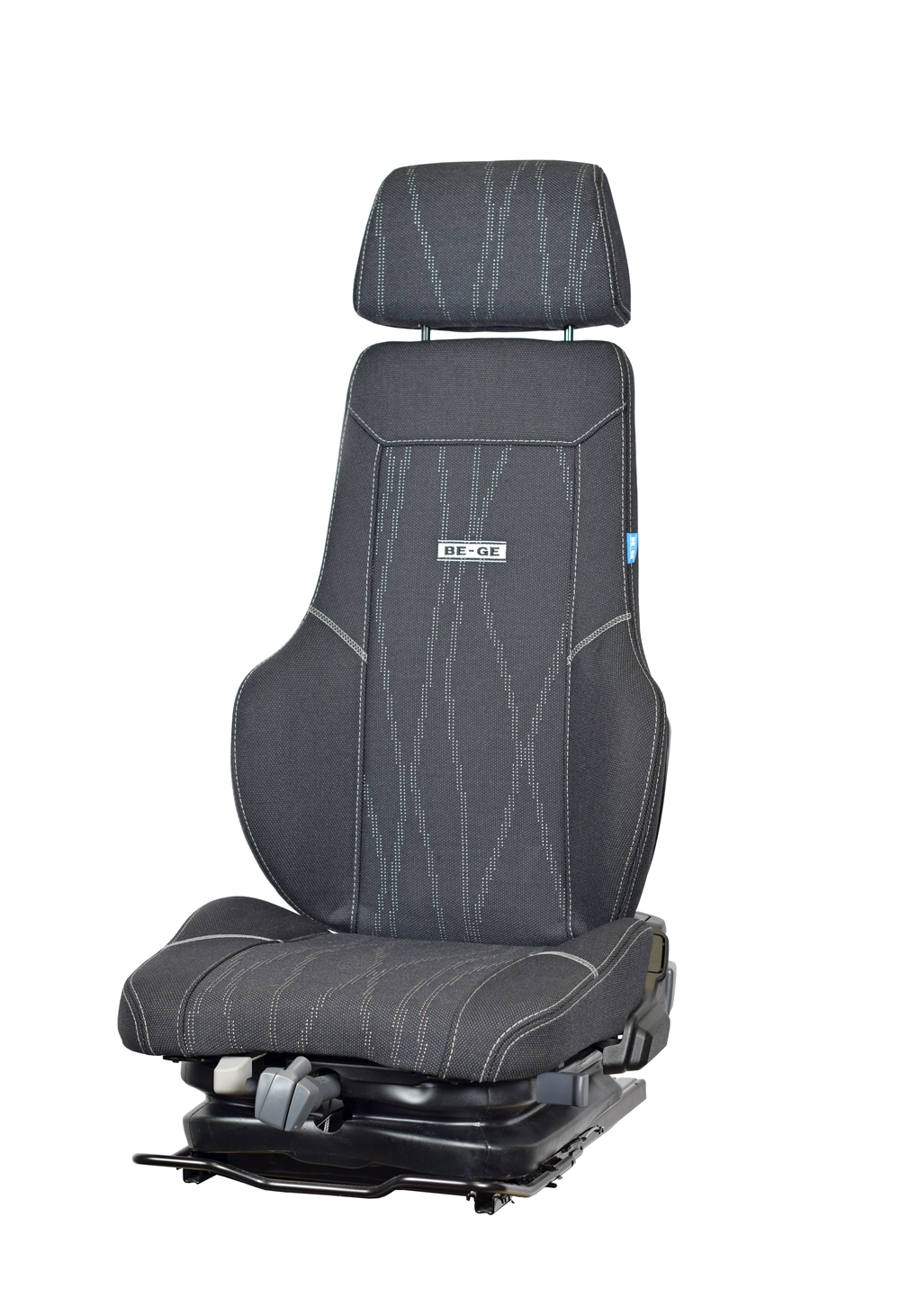

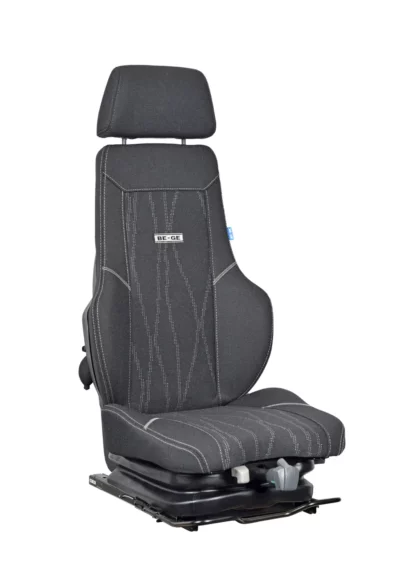

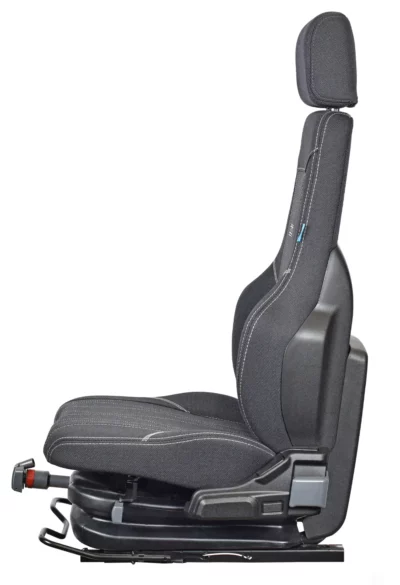

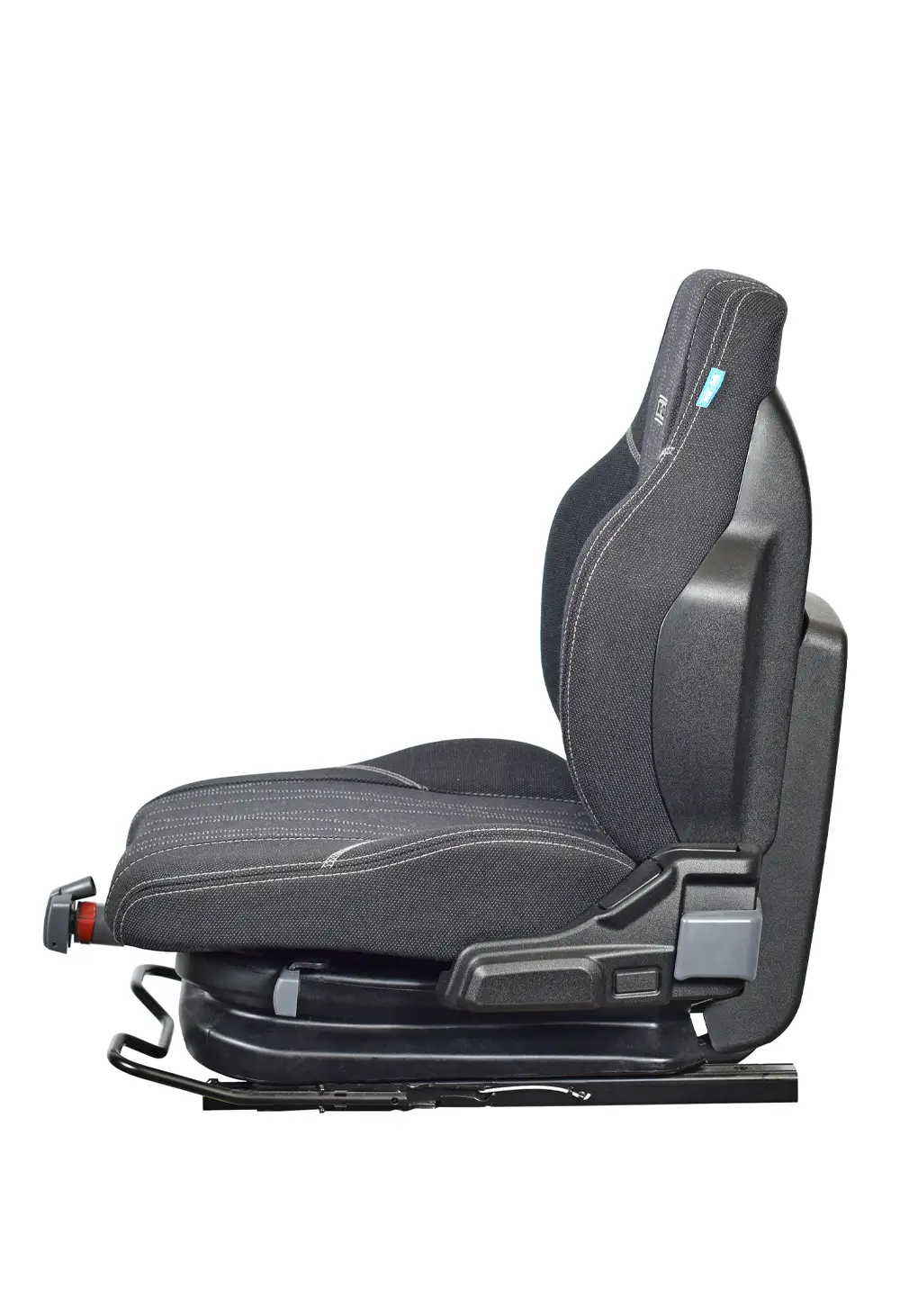

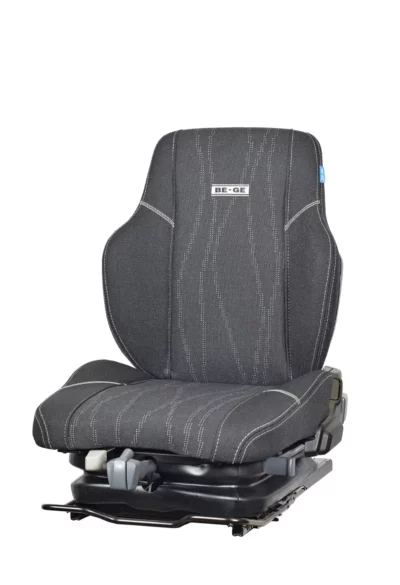

BE-GE 8200.0 is available with both low and high backrest, the high version is ideal for use in combination with a headrest for even more increased comfort during long work shifts and is equipped with adjustable lumbar support as standard.

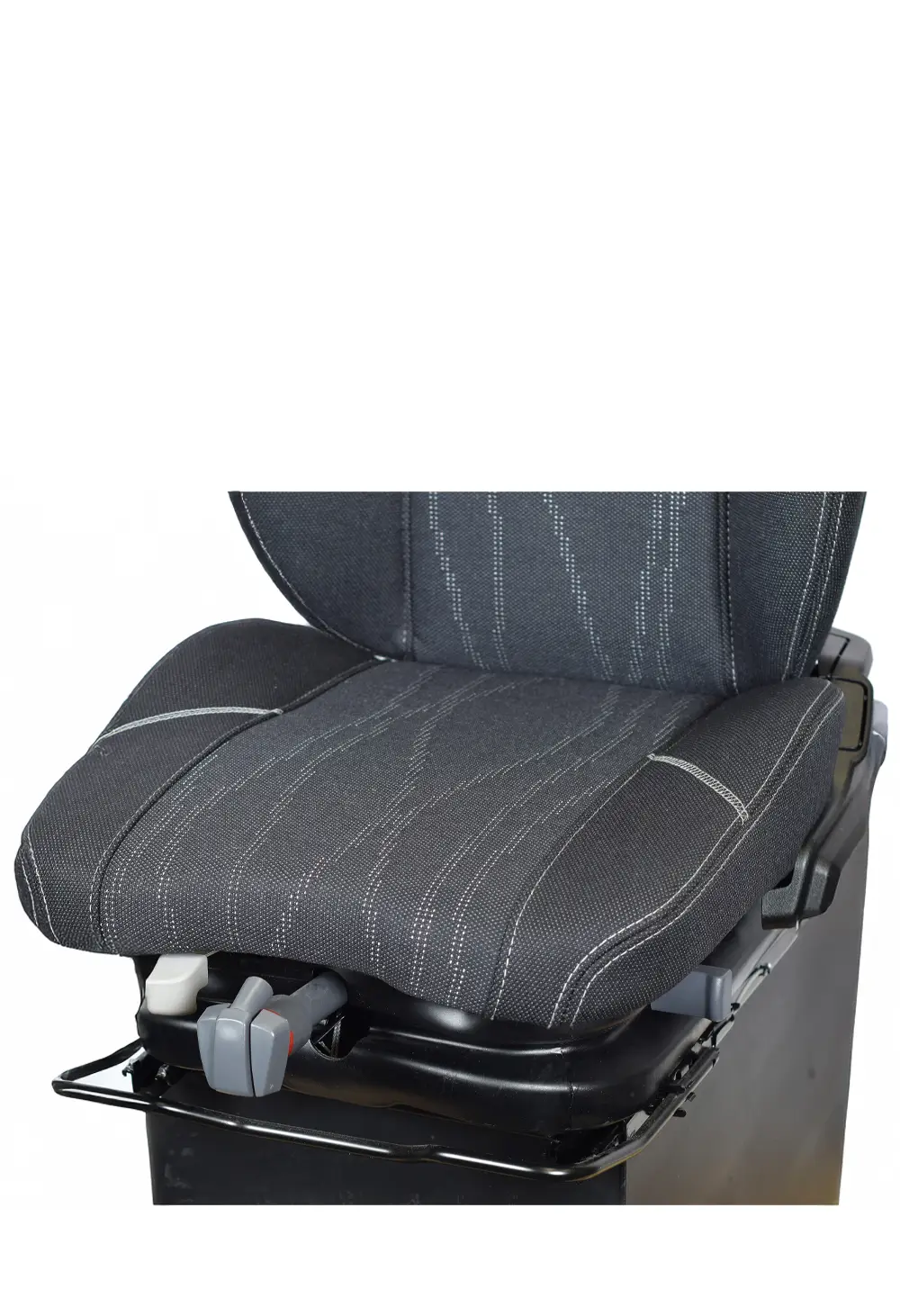

Seat cushion angle is adjustable in four steps. Weight adjustment is made via the easy operated handle on the left side of the seat and can be adjusted between 45-130 kg.
Standards (to fulfil standards certain specification is required)
» IT 1
» EN 13490
» FMVSS 302
» ISO 3795
» SS-ISO 24135-1:2006
Options:
The seats can be equipped with 24/48V electrical heating, 2-point safety belt and armrests. The low back can be equipped with manual operated air controlled lumbar support which is standard in the high back version, which also has a headrest as an option.
