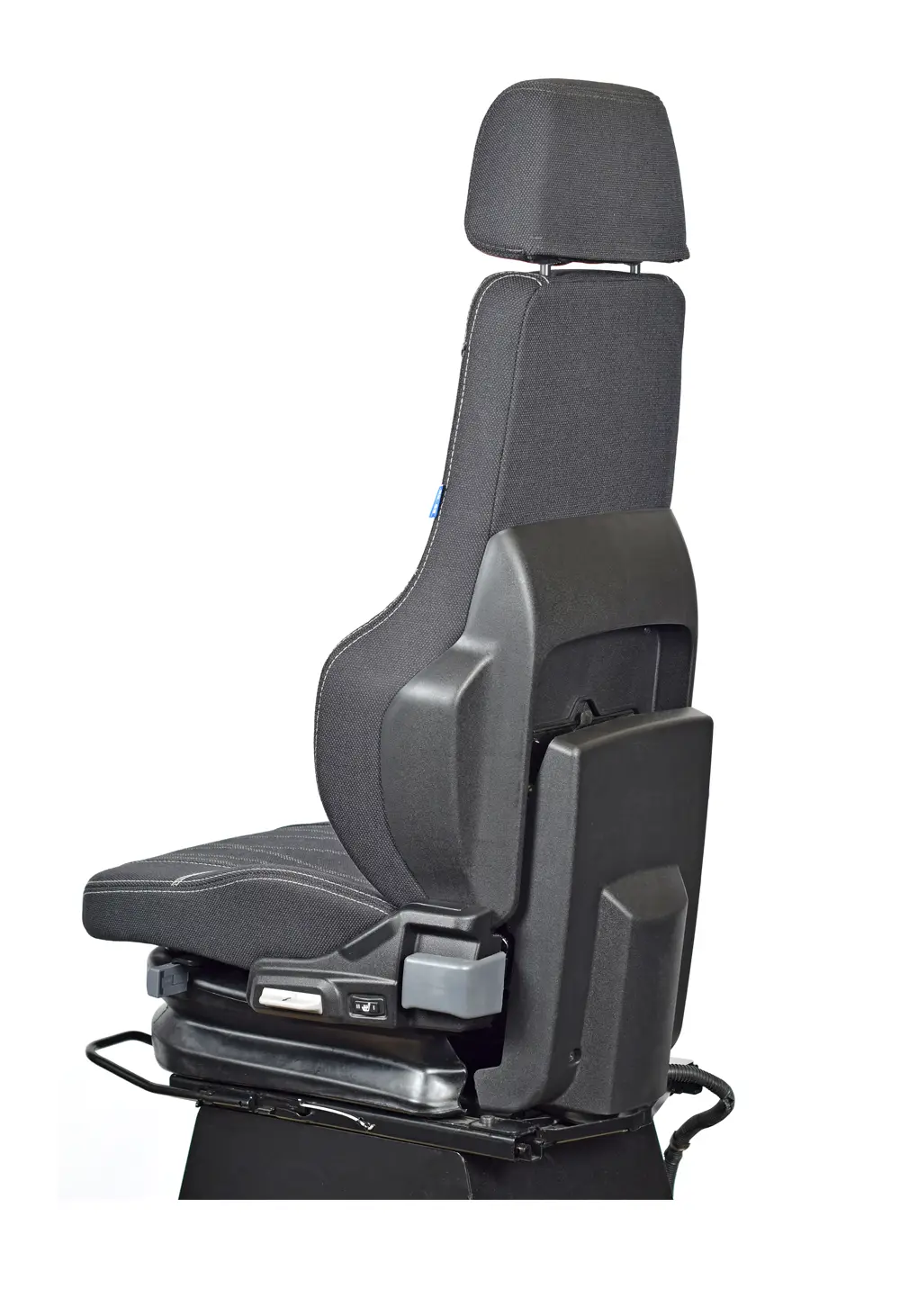

BE-GE 8100.1 is an airsuspended seat with 80mm susp. stroke especially designed for reach trucks or similar vehicles with limited cab space, which is built to be driven on smooth floors. By placing the suspension unit behind the seat’s backrest, the built in height becomes very low without decreasing the seats comfort. The seat has built in compressor with choice of 12 V, 24 V or 48 V.

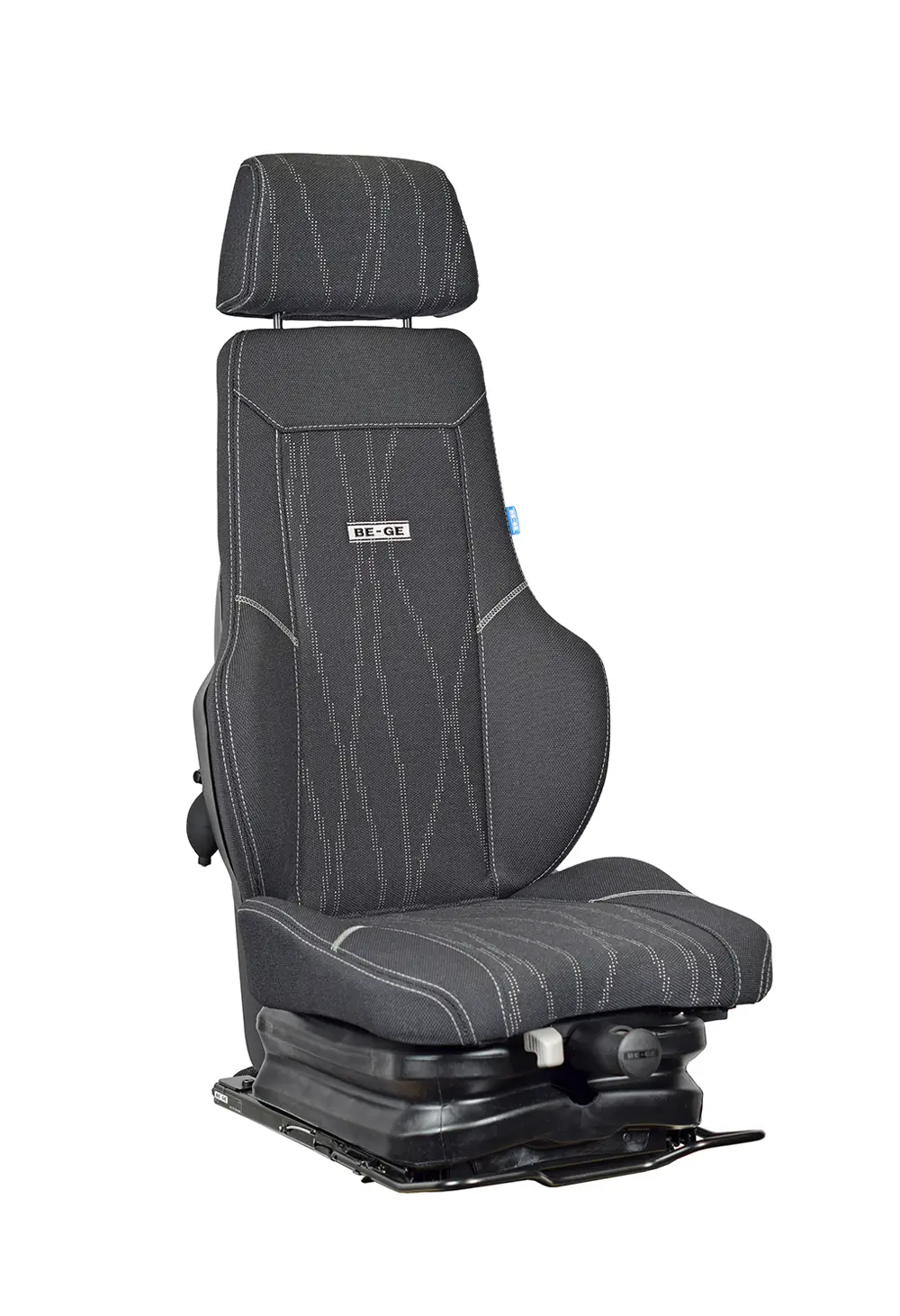

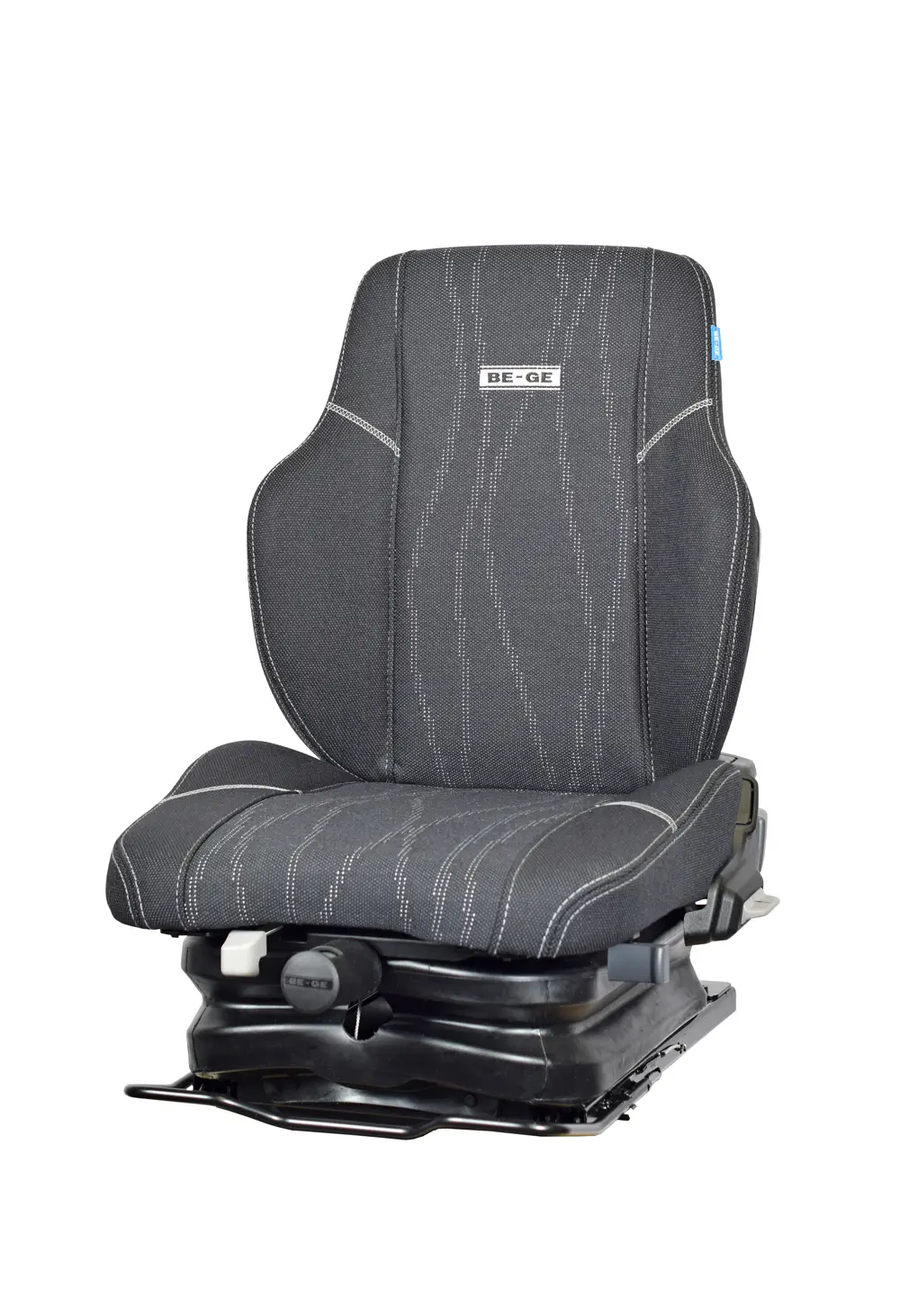

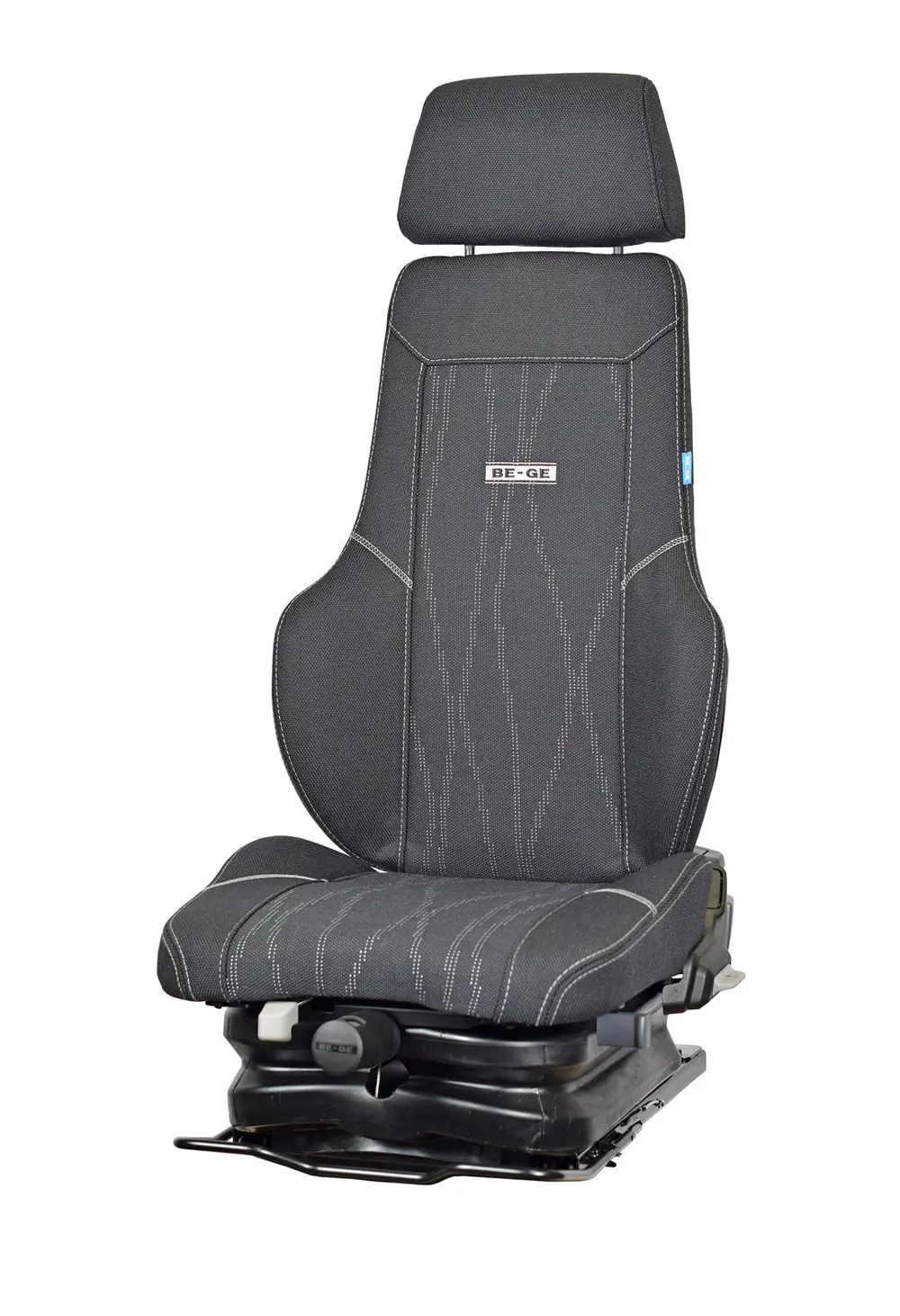

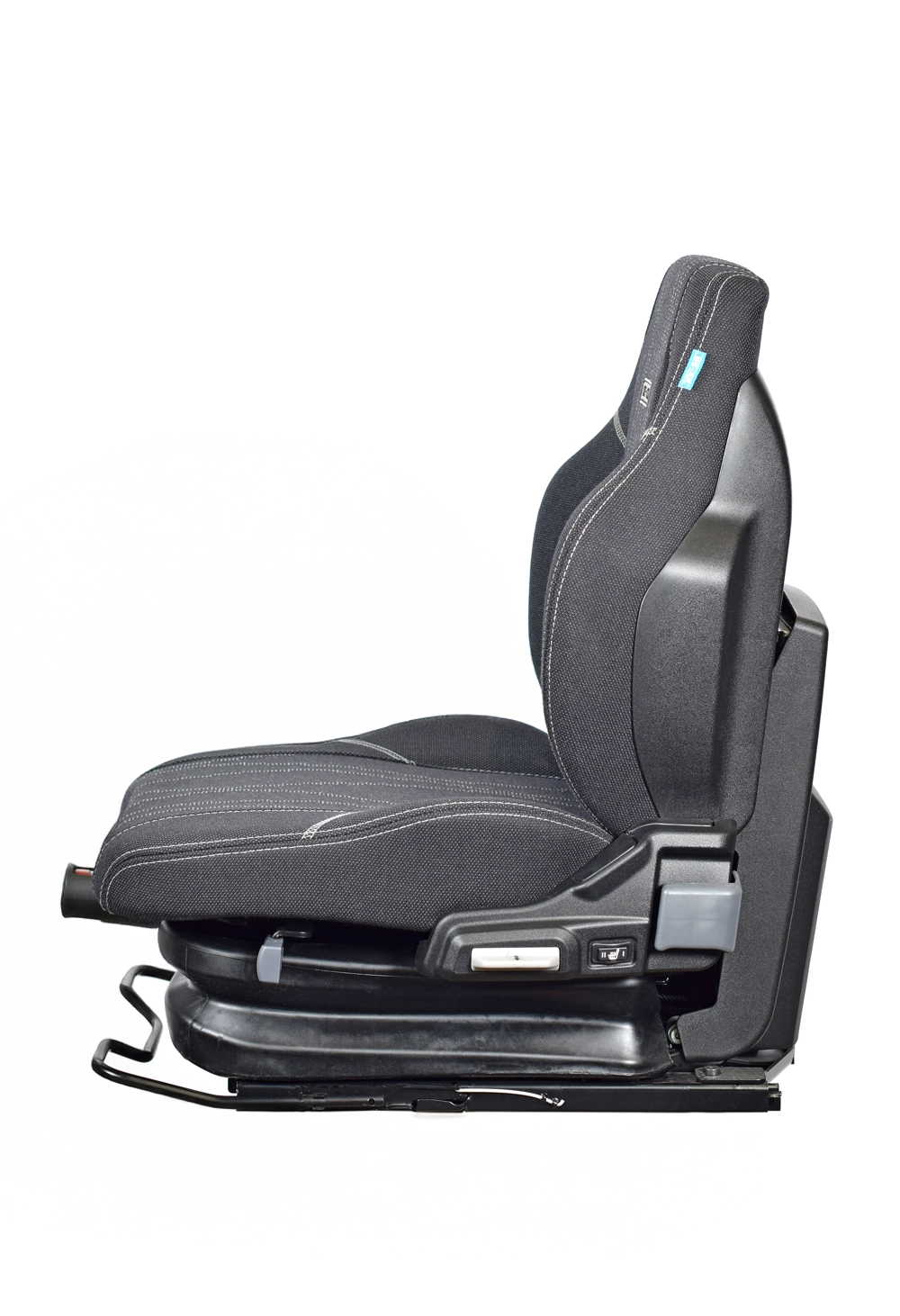

BE-GE 8100.1 is available with both low and high backrest, the high version is ideal for use in combination with a headrest for even more increased comfort during long work shifts and is equipped with adjustable lumbar support as standard. The low back can be equipped with manual operated air controlled lumbar support.

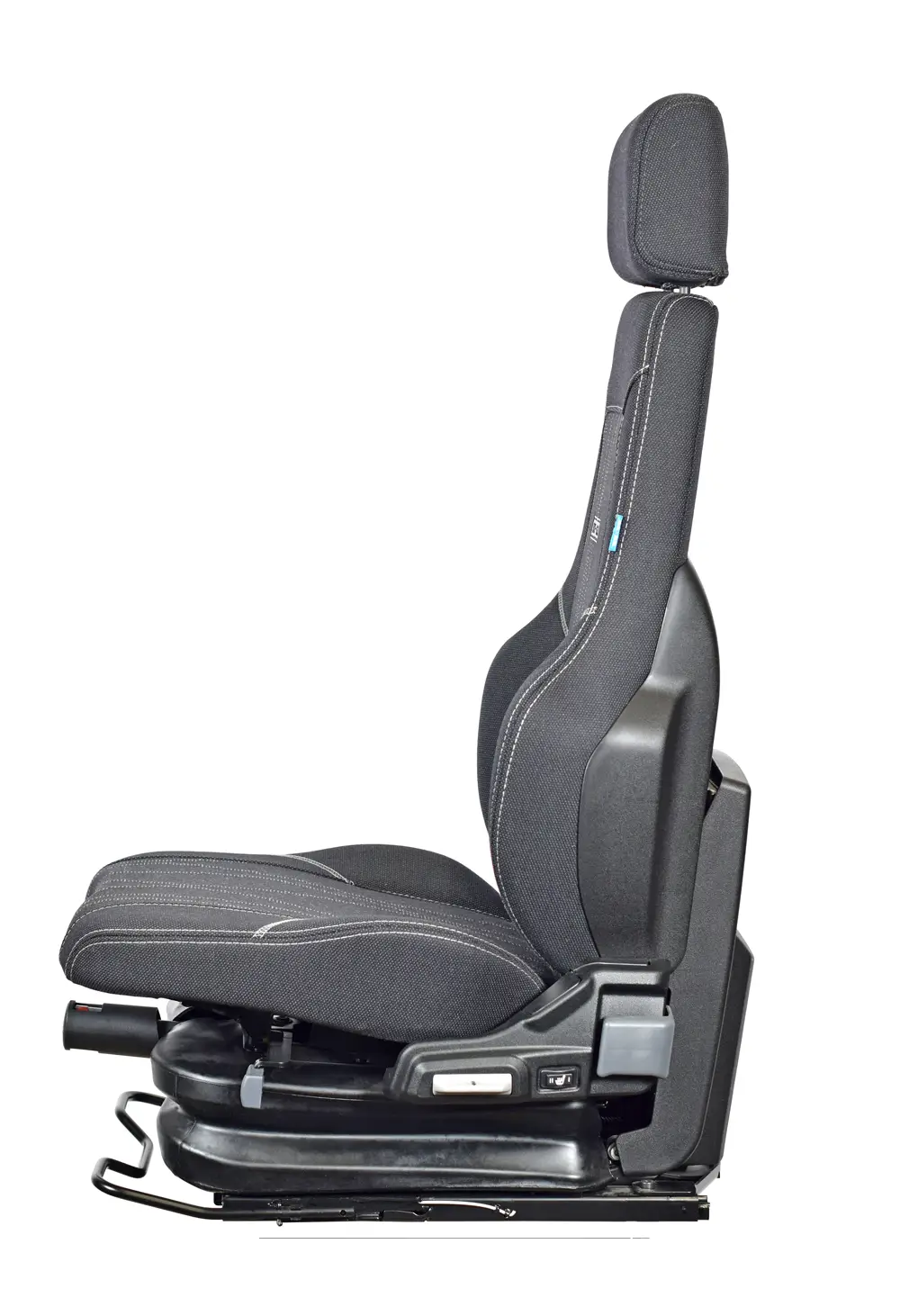

The seat is equipped with integrated compressor and available in 12 V, 24 V and 48 V, weight adjustment 35 – 150 kg, presence sensor, tilt of back cushion 0° – 23°, tilt of seat cushion
6° – 13°, length adjustment 210 mm and adjustable seat cushion.
Standards (to fulfil standards certain specification is required)
» IT 1 / IT 2
» EN 13490
» FMVSS 302
» ISO 3795
» SS-ISO 24135-1:2006
Optionen
The seats can be equipped with 12/24/48V electrical heating, 2-point safety belt and armrests. The low back can be equipped with manual operated air controlled lumbar support which is standard in the high back version, which also has a headrest as an option.
| Marke | |
|---|---|
| Art | |
| Zertifizierung | |
| Suspension |
